Sliding Drawer Box Factory · Specification-Based Quotes
Custom Size
Built Around Your Product
Discuss Project on WhatsApp Request Custom Quote
Buyer Answer
When is a sliding drawer box the right structure?
Choose the slide direction from the retail orientation and packing task. A long narrow drawer can rack when pulled from one side; a deep tray may need a different grip from a shallow jewelry slide. Added lining and wrap thickness reduce clearance, so the finished construction matters more than the blank board gap. A ribbon pull improves access but adds its own attachment and load point.
Test the filled drawer horizontally and in the intended shelf orientation. Open it from the normal pull point, inspect rubbing and check whether it runs out of the sleeve unexpectedly. Compare several finished samples rather than one unusually loose prototype.
Before artwork starts, confirm the internal dimensions, tray retention, opening direction, pull position and insert clearance. A physical structure sample should move smoothly without the tray dropping out or binding once the wrap and insert are installed.
Review our factory workflow, certification records and packaging cases. For a related structure, compare the sleeve and matchbox-style box before finalizing the RFQ.
Technical Specs
Product Specifications & Parameters
Configure every parameter of your slide-out packaging box. Standard options are fully detailed below for procurement and brand development:
| Parameter | Standard Sourcing Options |
|---|---|

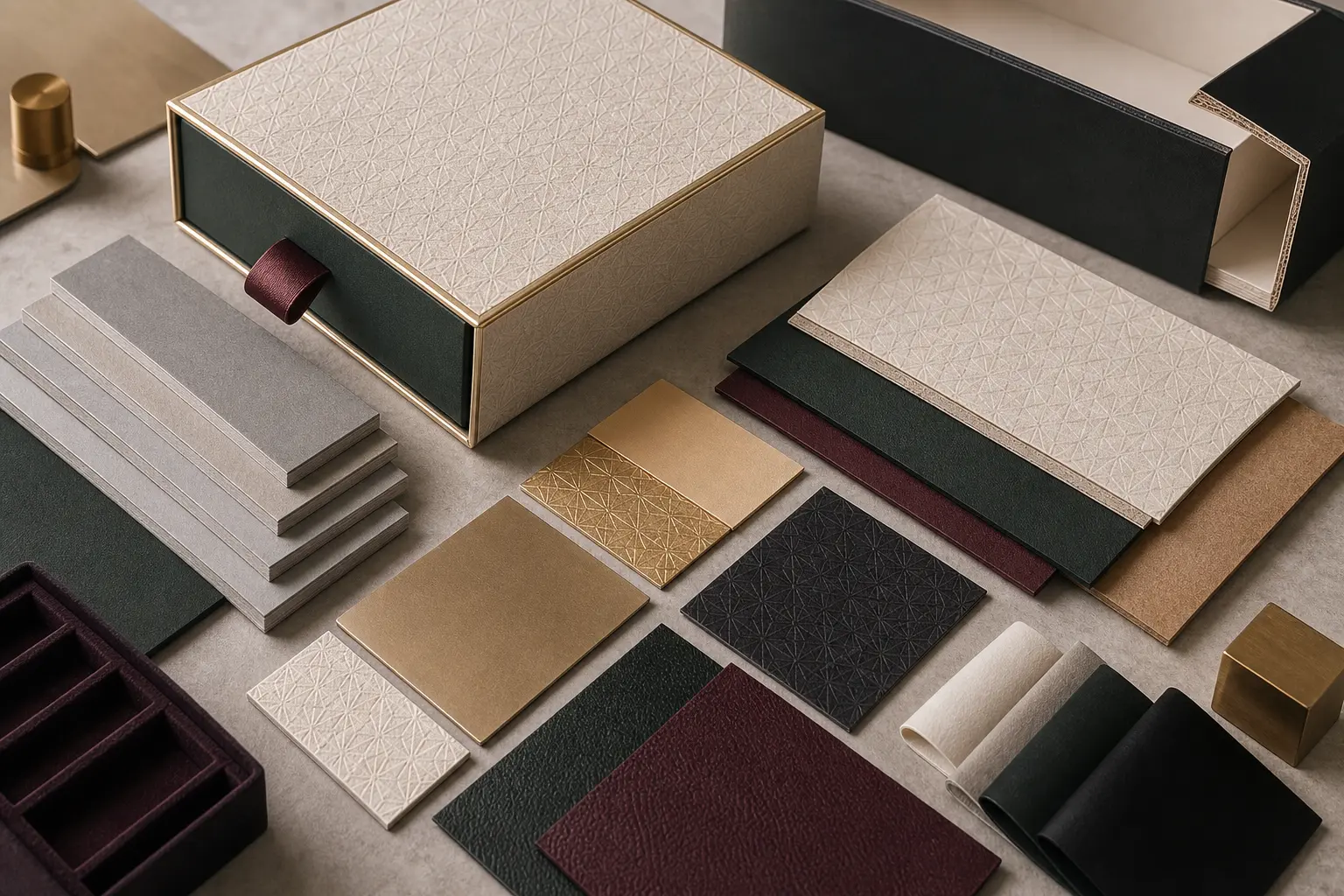

| Board Thickness | 1.2mm (600g) / 1.5mm (800g) / 2.0mm (1200g) / 2.5mm (1500g) rigid raw greyboard |
| Sleeve Wrap paper | Premium art paper (157gsm/128gsm), black/brown unbleached kraft paper, high-end metallic cardstock, textured linen or leatherette paper |
| Sleeve Structure | Open-ended sleeve (open on both ends) or Closed-back box shell (capped on one end) |
| Pull Mechanisms | Premium satin ribbon tab, grossgrain loop, cotton cord, genuine/faux leather pull, or semi-circular finger notch cuts |
| Common Sizes | Fully customized. Standard formats: Small Jewelry (8x8x3cm), Cosmetic Case (12x8x4cm), Tech Case (16x10x5cm) |
| Surface Finishing | Soft-touch velvet matte, standard scratch-resistant matte, high gloss laminate, spot UV, hot foil stamping, blind embossing |
| Print Methods | CMYK full color offset lithography, Pantone PMS solid spot ink mixing, screen printing, gold/silver ink printing |
| Internal Inserts | Molded EVA foam with velvet layer, polyethylene foam, eco-friendly custom molded pulp, satin linings, card dividers |
| Minimum Order | 500 pcs per design and size; final specification recorded in the quotation |
| Sample Lead Time | 3–5 days after specification confirmation; shipping time additional |
Bespoke Options
Luxury Surface Finishes & Styling
Finish your sliding packaging with customized hardware and tactile textures that match your product's market positioning:

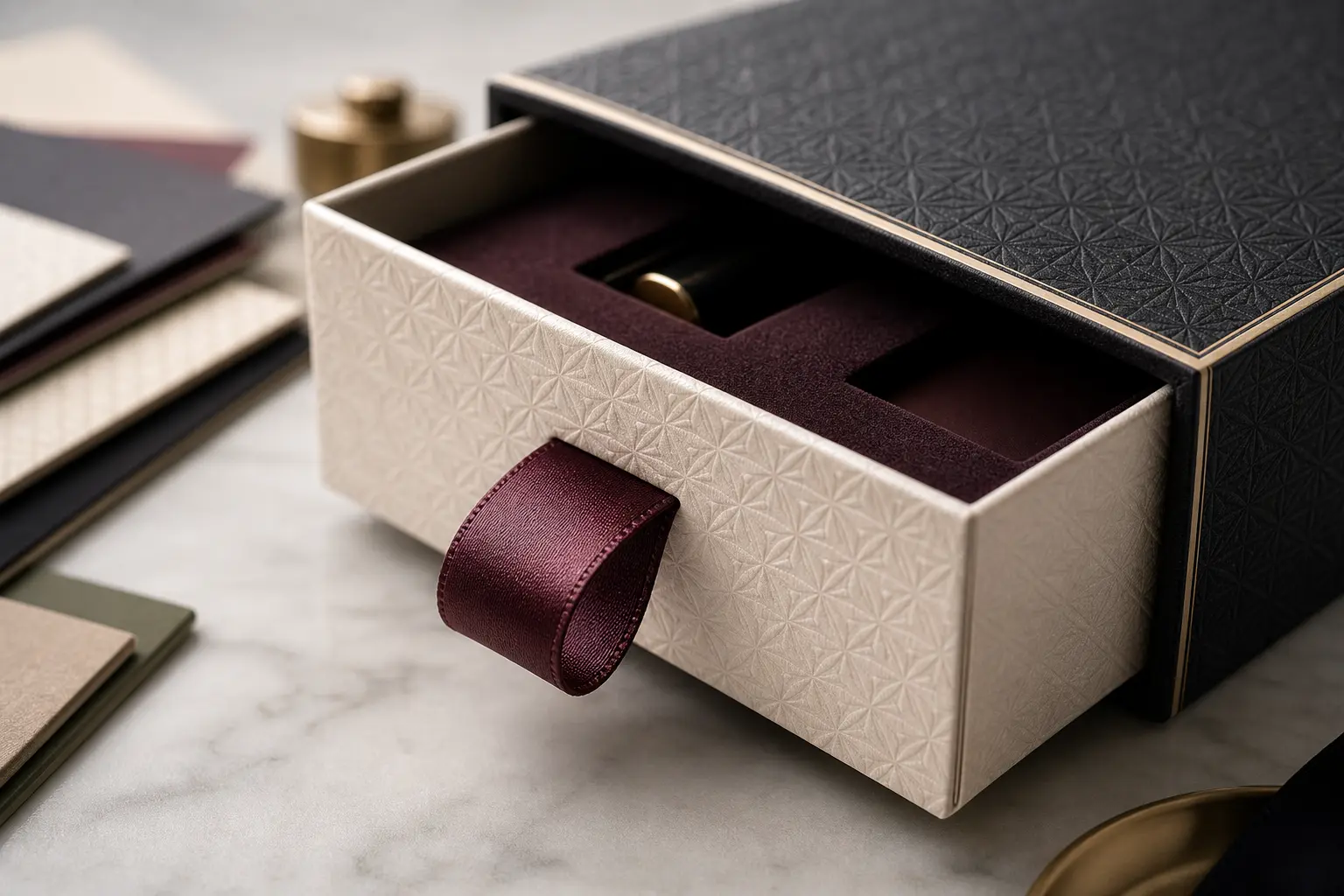

Ribbon Pulls & Tabs
Add a premium grosgrain, cotton, or satin ribbon loop, color-matched to your corporate brand palette, for a tactile pull motion.

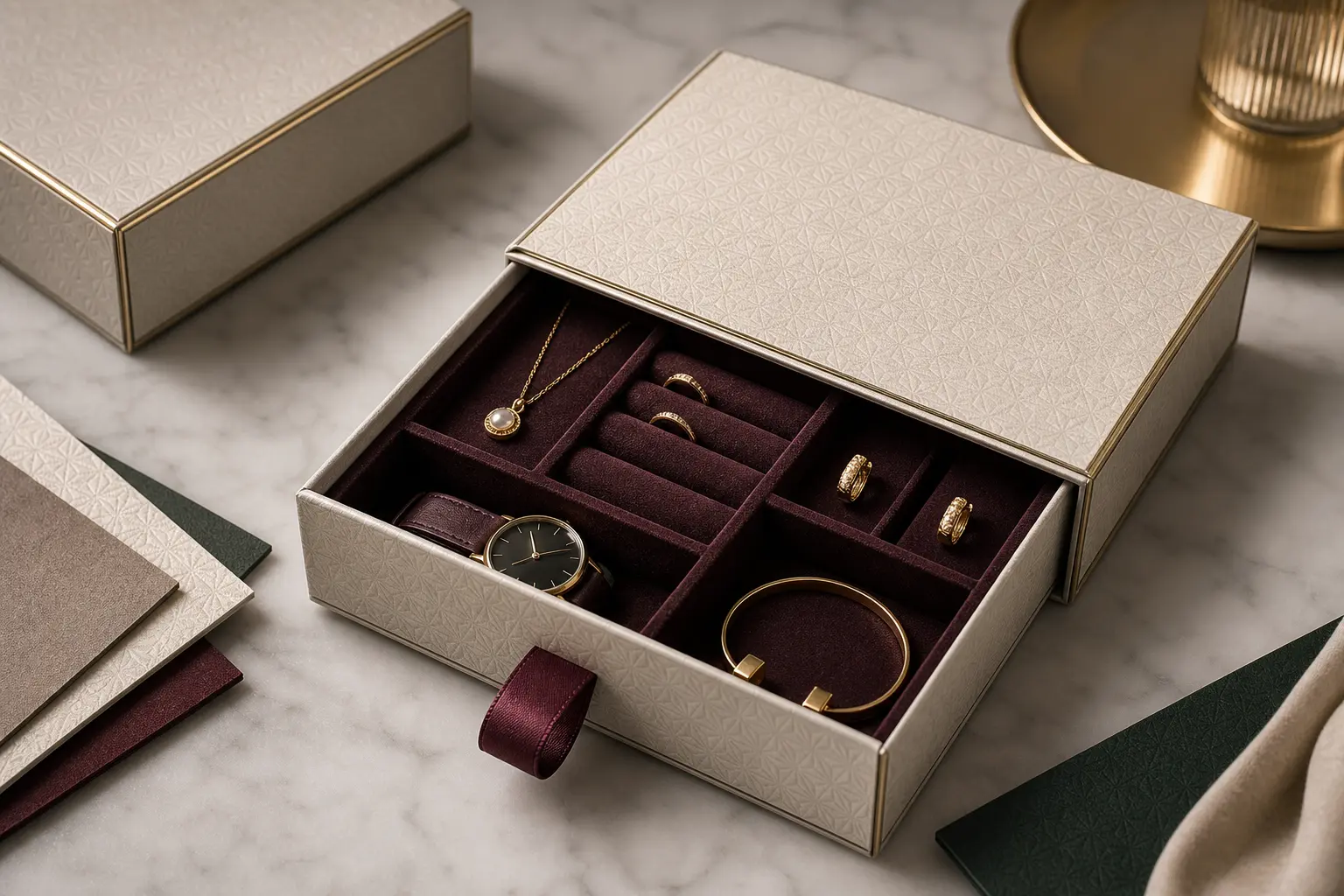

Custom Molded Trays
Flock EVA foam or plastic trays with soft micro-velvet to safely secure high-end jewelry, watch cases, or delicate glassware items.
Metallic Foil Stamping
Precision hot foil stamp your branding in gold, rose gold, silver, copper, or deep holographic colors onto textured paper sleeves.
Textured Specialty Papers
Wrap the outer sleeve in premium linen, embossed leatherette, or soft-touch paper to deliver a distinct tactile feel prior to opening.
Procurement Decision

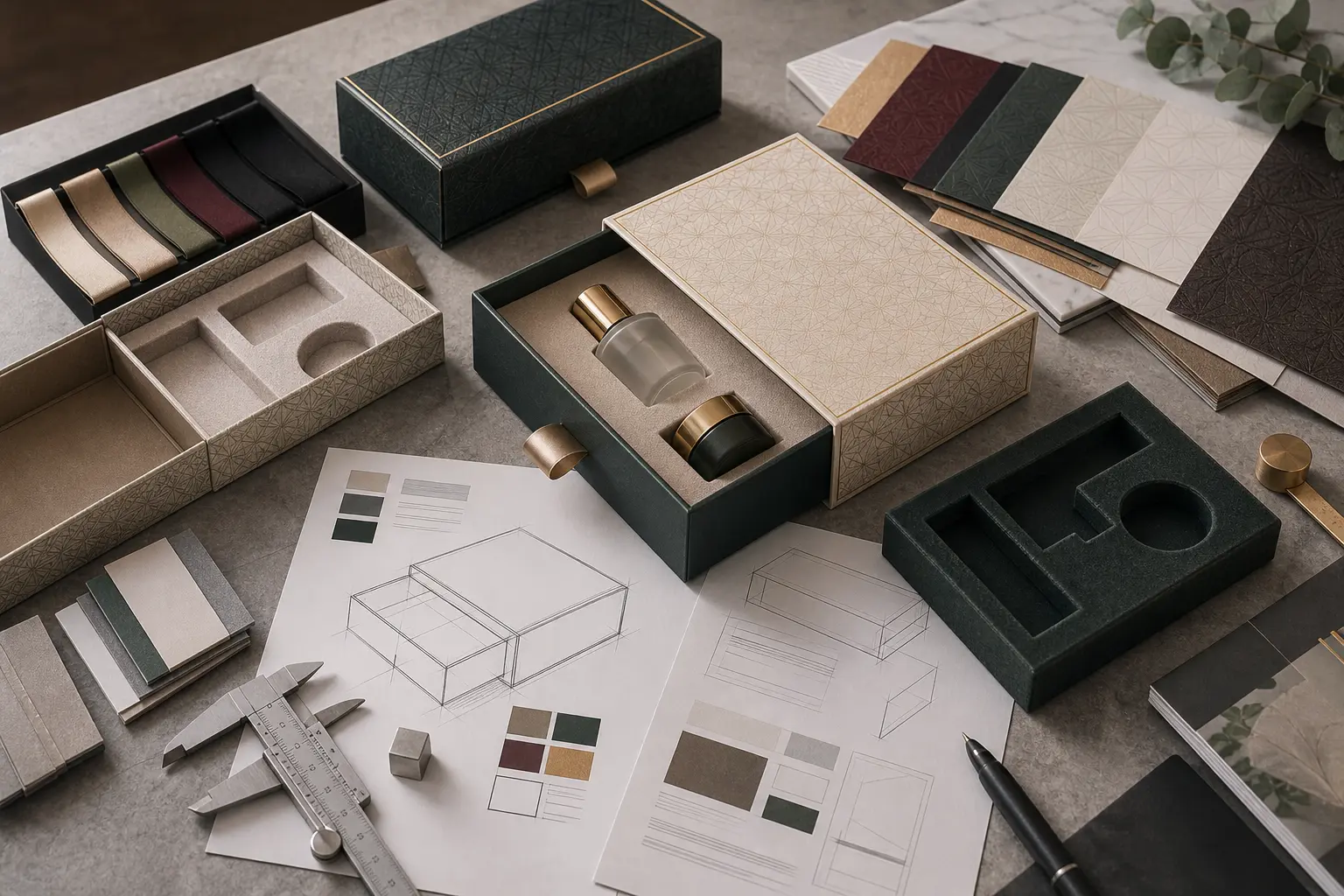

What changes a sliding drawer box quotation?
Compare quotations only after every supplier is using the same sleeve, tray and insert specification. The following decisions affect both price and usability:
| Decision | What changes the quote | What to send or confirm |
|---|---|---|
| Sleeve & tray | Finished size, board grade, open-ended or closed-back construction | Product dimensions, weight and opening direction |
| Slide & pull | Retention method, pull hardware, ribbon length and target opening feel | Preferred pull plus any child-safety or transport constraint |
| Insert | Material, cavity count, clearance and surface treatment | Product sample, CAD file or dimensioned photos |
| Print & finish | Ink coverage, foil, embossing, spot UV and lamination | Vector artwork plus Pantone or finish references |
| Order & delivery | Quantity, approval route, packing method, freight mode and trade term | Target quantity, destination and latest acceptable delivery date |
See the sliding drawer packaging guide and custom box price guide before comparing factory quotes.
Target Industries
Customized for Elite Retail Segments
We craft custom sliding drawer structures matching the protective and display requirements of various high-value products:

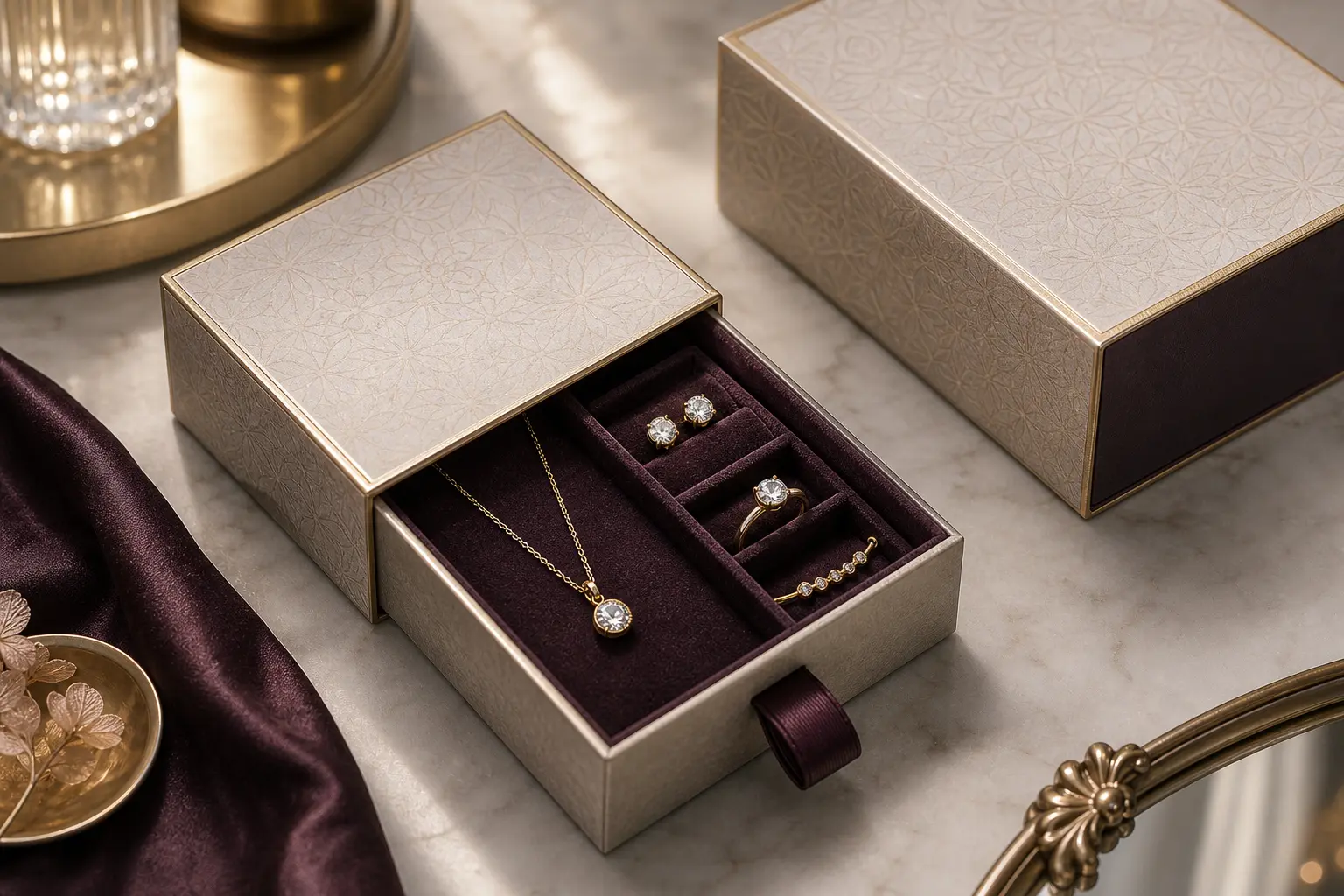

Fine Jewelry & Keepsakes
Compare felt or velvet slot inserts with the actual jewelry. Specify any anti-tarnish requirement separately and request evidence for the proposed lining and metal combination.

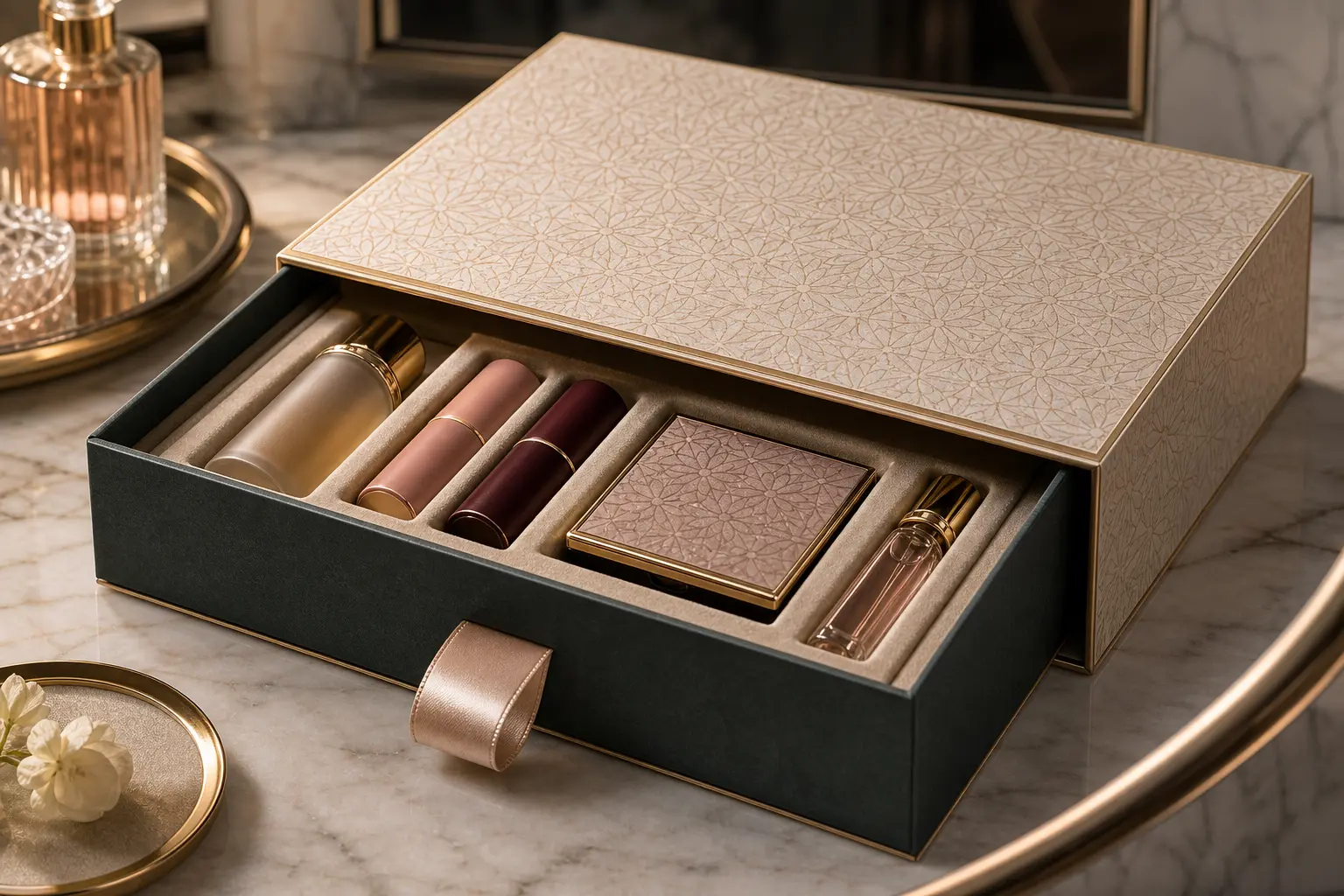

High-End Perfumes & Cosmetics
Snug EVA foam holding glass fragrance bottles, lipsticks, or serums completely safe from high-impact drop shocks.
Vaporizers & Luxury Tech

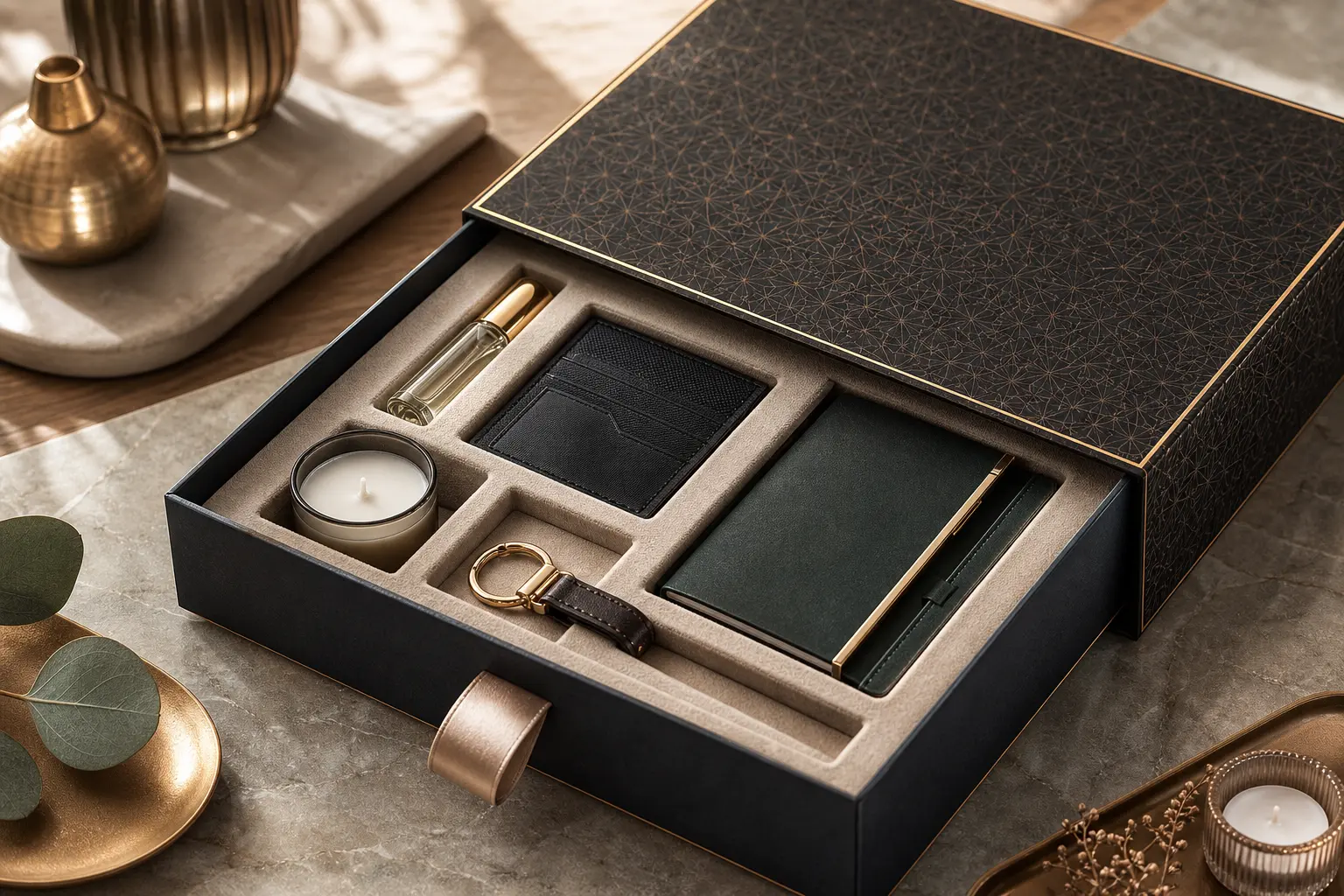

Compact, rigid slide sleeves with specialized compartments for chargers, batteries, accessories, and instruction booklets.
Gift Cards & Corporate VIP
Thin, elegant drawer envelopes fitted with ribbon pull loops to turn vouchers, coins, and VIP memberships into luxurious presents.
Factory SOP
Step-by-Step Production Process
1️⃣
Digital Dieline Drafting
Submit your product dimensions. Our structural engineers prepare a flat dieline layout and 3D digital mockup, with timing confirmed after project review.
2️⃣
Physical Prototyping
Physical sampling takes 3–5 days after specification confirmation. Use the sample to assess loaded sliding, insert fit and the agreed removal method; an unprinted sample does not approve the final wrapped surface.
3️⃣

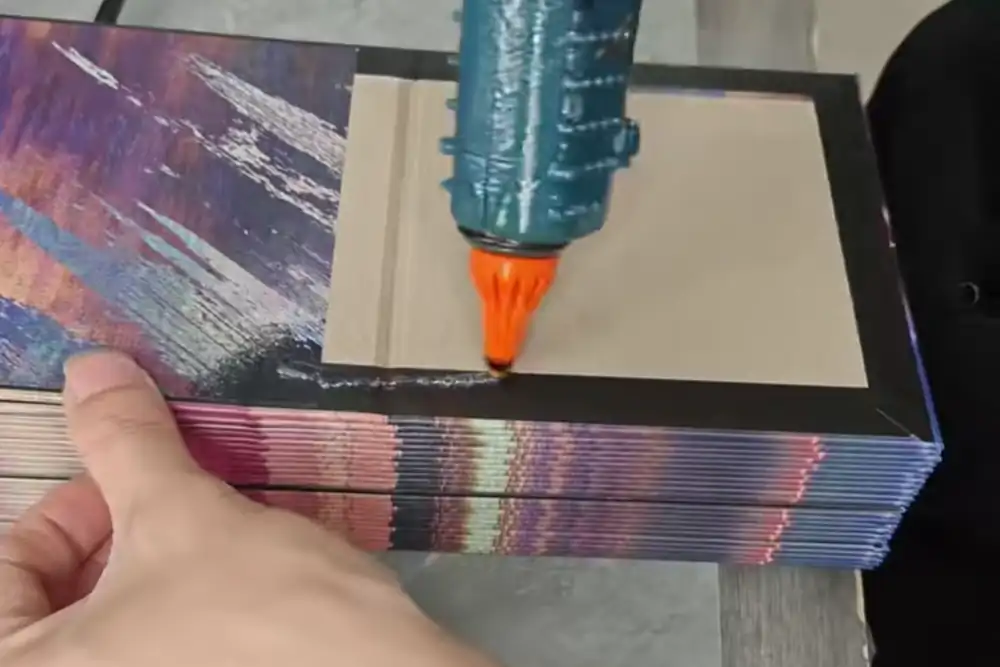

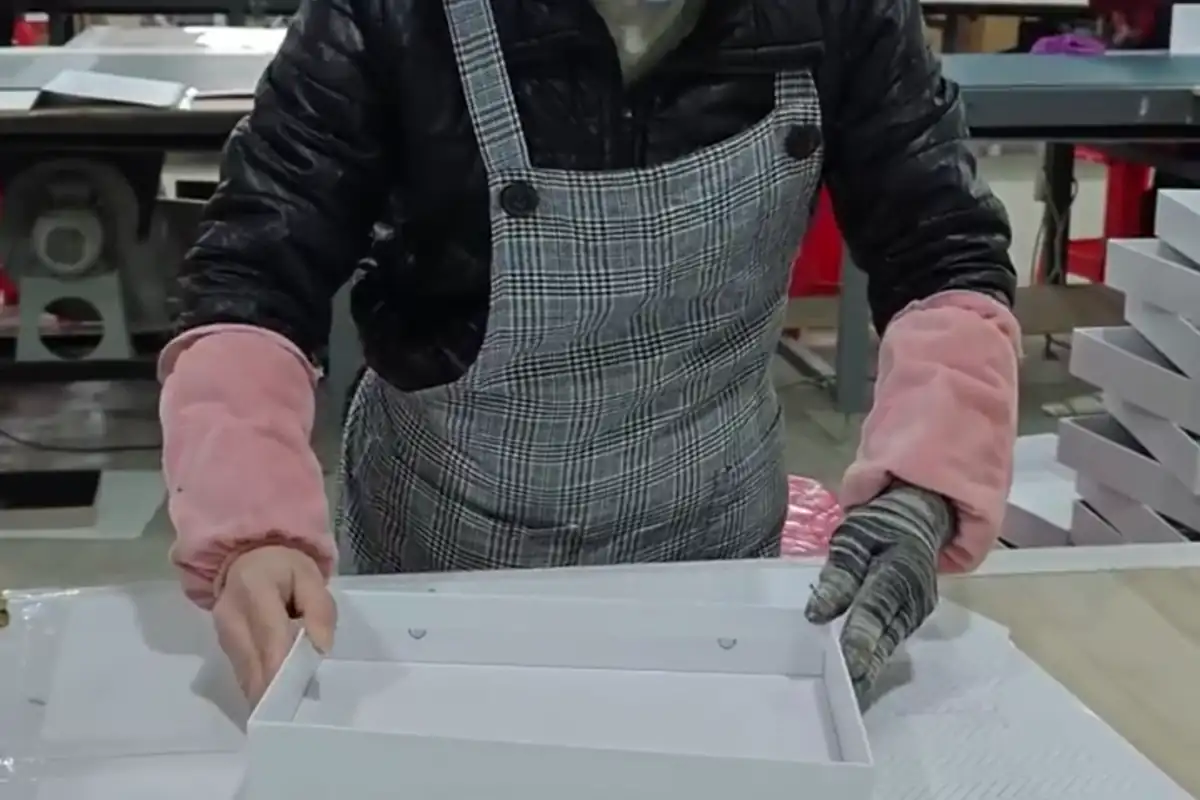

Precision Die-Cutting & Pasting
Confirm the proposed wrapping and assembly route, including ribbon attachment and the finished-sample checks for sleeve friction, pull retention and artwork alignment.
4️⃣
Secure Consolidated Delivery
The completed sliding boxes are nested, safely packaged in heavy outers, and shipped globally via sea, air, or express courier.
Before production approval

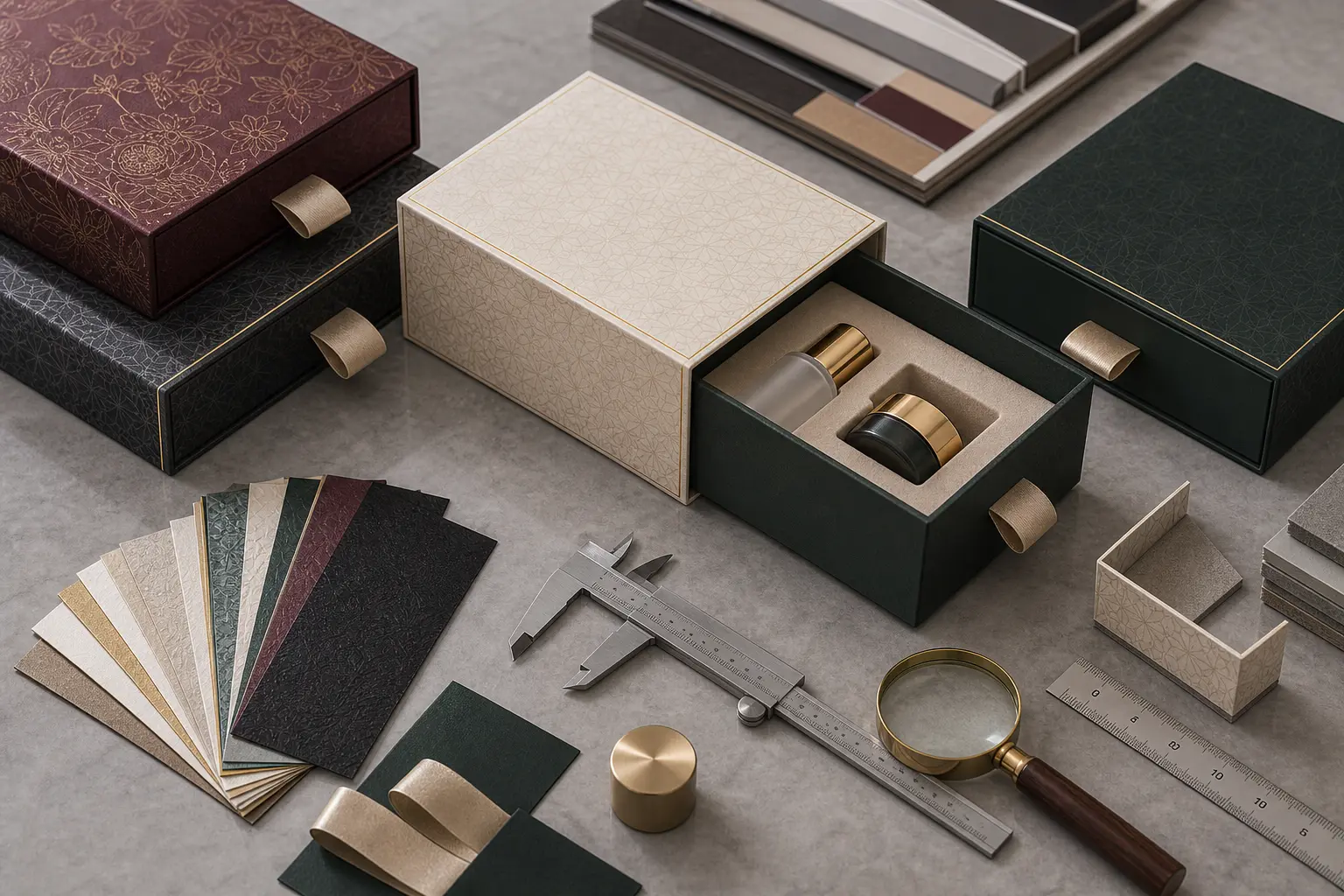

How to check a sliding drawer box sample
Check the sleeve, finished tray, pull and insert together with the actual packed product. An empty unwrapped structure does not show how the finished set will slide or how easily a customer can remove the contents.
Buyer sample-approval checklist — not a test report or a claim that this configuration has passed testing.
| Check | What to do | What to record before approval |
|---|---|---|
| Opening and closing | Slide the loaded tray in its intended opening direction, with the final wrap and insert fitted. | Note binding, uneven resistance, scuffing or paper lifting; agree the opening feel against the approved sample. |
| Tray retention | Check the agreed opening distance and handling orientation. Confirm whether the tray is fully removable or needs a stop. | Record the chosen retention method and any unintended tray release. Do not assume every sleeve includes a stop. |
| Pull attachment | Use the ribbon, cord, tab or notch with the loaded tray over the agreed handling cycle. | Inspect loosened anchors, tearing and frayed edges; confirm pull position and access. |
| Insert removal | Take each product out and replace it using the intended finger access or lift ribbon. | Check grip, lid clearance, label rubbing and snagging. Removal should not rely on pulling a cap, clasp or delicate part. |
| Transit recheck | Check the loaded set again after the agreed shipping simulation in its planned outer carton. | Compare tray movement, insert displacement and finish damage with the pre-shipment sample. A presentation box is not a shipping carton. |

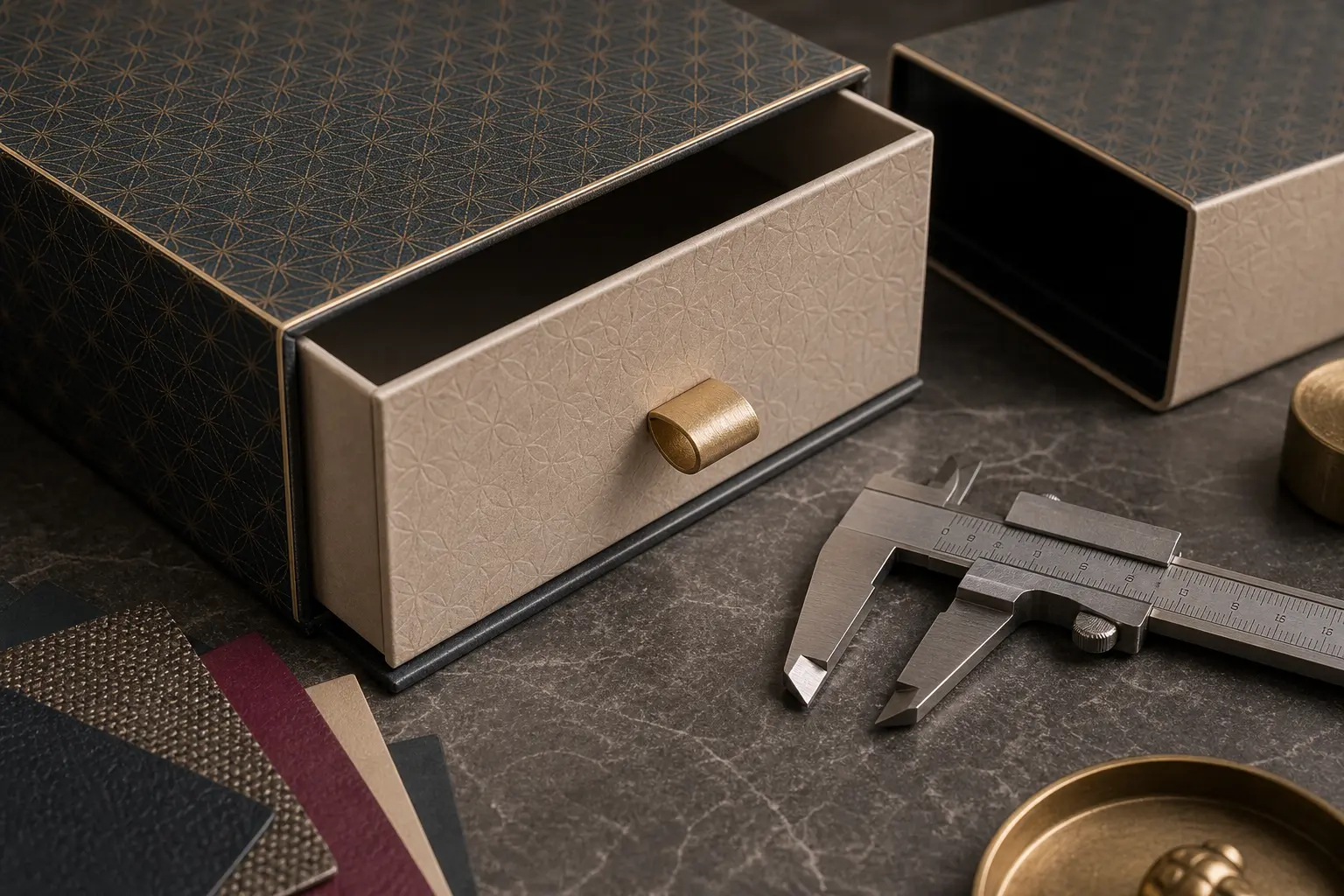

Clearances, cycle counts, handling conditions and acceptance limits must be agreed before sampling for your product and materials; there is no universal gap or test result supplied here. Keep the sample ID, drawing revision, packed weight, observations, photos and approval decision together.
Include any stop or removal requirement in your drawer box specification. For the outer pack, use the shipping-test planning guide to discuss an appropriate test with your supplier.
Questions
Frequently Asked Questions
What is a sliding drawer box structure?

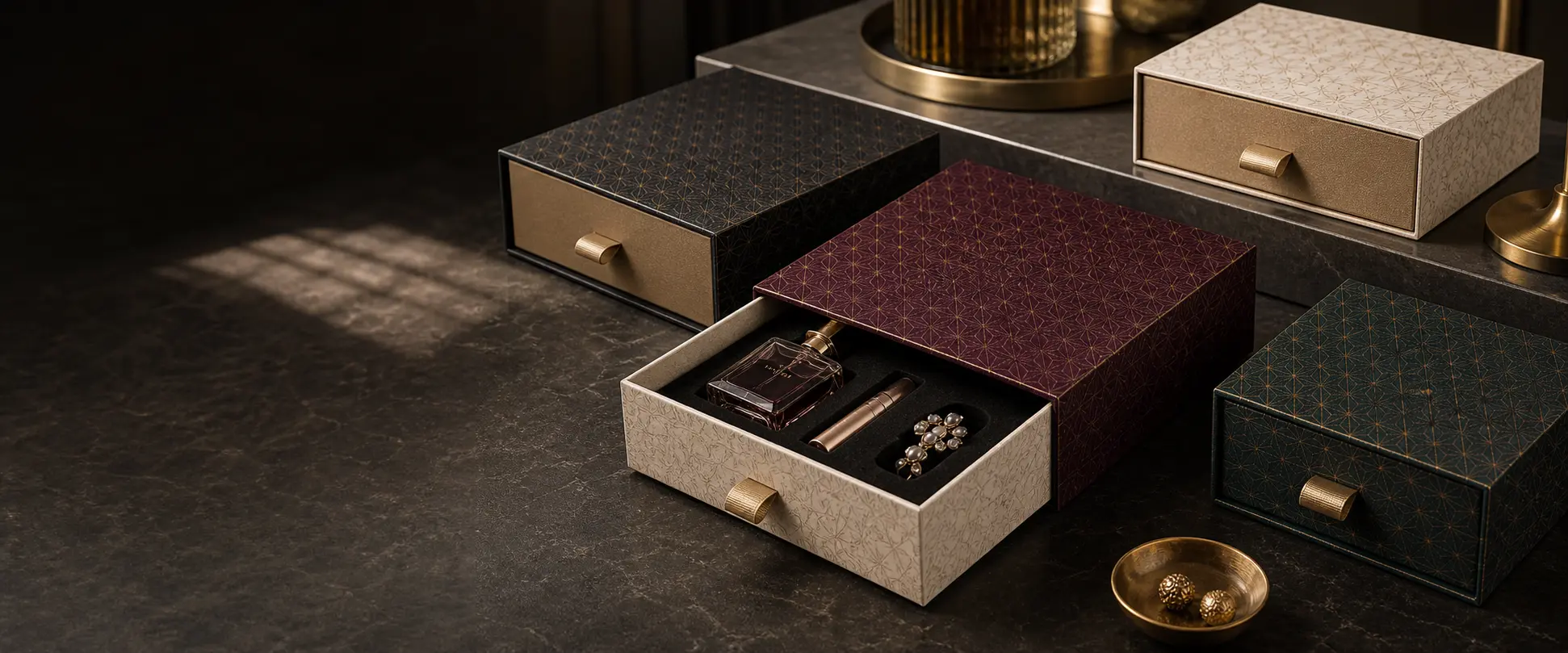

A sliding drawer box (also known as matchbox or sleeve-and-tray packaging) consists of two main components: an outer structural sleeve and an inner sliding tray. The tray is pulled out using a satin ribbon tab, grossgrain ribbon, or a finger notch, creating a smooth and interactive sliding reveal.
How do open-ended and closed-back drawer boxes differ?
An open-ended sleeve lets the tray move through either side, while a closed-back shell stops the tray and creates a single opening direction. The right structure depends on product weight, reveal sequence and how securely the tray must be retained.
What are the common pull options for slide-out boxes?
Common drawer pull configurations include satin or grosgrain ribbon loops, cotton cord, leather tabs, finger notches and push holes. The pull is selected after checking tray weight, opening direction and the desired presentation.
Which insert should I choose for a sliding drawer box?
Use EVA foam when firm retention is the priority, paperboard for a recyclable paper-based presentation, molded pulp for shaped fiber protection, or velvet-wrapped trays for jewelry and display products. Final fit should be checked with the actual product or dimensioned sample.
What changes a sliding drawer box quotation?
Finished dimensions, board and wrap grade, pull hardware, insert material, print coverage, finishing steps, quantity and delivery terms all change the quote. Send the product size and weight, artwork, target quantity, destination and launch deadline for a comparable factory quotation.
Is a sliding drawer box the same as a slide box or a sliding box?
Yes. Buyers specify this structure as a custom sliding box, sliding box packaging, custom slide boxes or simply a drawer box, and all of them describe the same sleeve-and-tray build: an outer sleeve with an inner tray that slides out. The naming varies by market more than the engineering does. What actually changes your quotation is tray depth, board thickness, and whether the pull is a ribbon tab or a finger notch.
Instant Inquiry
Get a Specification-Based Factory Quote
Provide the product dimensions, target quantity, pull, insert and finish requirements. The sales team will review the specification before confirming price, sample route and schedule.
Send the product mass, sleeve orientation and preferred pull. Ask for the accepted sliding behaviour and retention method to be recorded with the wrap and tray specification.
